Aavik I-880 - The ultimate class-A amplifier
With the I-880, Aavik has expanded their range of amplifiers with their most innovative and sophisticated amplifier production to date. The primary development goal for the I-880 was to create a powerful non-switching pure Class A amplifier with the lowest possible output impedance that would contribute to a better signal and less noise, thus improving speaker performance. All with the aim of getting a much more organic sound and more musicality. To that extent, it has succeeded.
The new I-880 has a revolutionary class-A amplifier that can deliver a full 2x200 watts into 8 ohms. The entire circuit of the amplifier has been designed so that the signal path is as short as possible, and the noise is therefore kept to an absolute minimum. The innovative Aavik design is in solid copper and with its efficient heat sinks, the I-880 amplifier does not get as hot as conventional amplifiers, resulting in higher efficiency.
At the same time, Aavik utilizes the latest technologies from Ansuz, which help ensure the I-880's sonic properties. The technologies such as Tesla Coils, Active Tesla Coils and the 3rd generation Dither help to create a sound image that is incredibly holographic, natural and crystal clear. Every single note can be located with millimeter precision, and it conveys the grandeur, detail and all that sensitivity with impressive conviction. If you are looking for the ultimate listening experience, then you should consider the I-880. Contact us either for a demo in the store or at your own home.
Technologies and Components
Through a long and intensive research and development process, Aavik's engineering team identified several characteristic elements in the traditional Class A amplifier design that could be improved, which has had a very positive effect on the soundstage and musicality.
To create the best and most effective control section, Aavik's engineering department has carefully tested and evaluated each electronic component to ensure both the lowest possible noise floor and further refinement of the signal. The ultimate goal of this thorough approach is for the amplifier to unlock a dynamic musical range that projects even the smallest musical details onto a palpably larger soundstage with an extremely quiet background.
Aavik 200W pure class A amplifier
Aavik have designed a circuitry that constantly keeps the bias spread 0.63 V above the required current, no matter where it is in the cycle. So, no matter how much current the power amp requires to perform, it always stays in Class A up to an impressive 2×200 W into 8 ohms, while at the same time not consuming unnecessary power.
This significant reduction in the power requirements of the amplifier allowed Aavik to design the capacitors as smaller units and place them locally, so that essentially each of the eight pairs of output transistors has its own capacitor bank right next to it. This means that the current does not have to flow through long wire harnesses and long circuit boards. The current is always directly at the output transistor, which means a shorter signal path and therefore less noise. In addition, this innovative Aavik design also means that the 880 amplifiers do not get as hot as conventional Class A amplifiers, resulting in higher efficiency.
Resonant mode power supply
This Aavik series is designed to ensure massive power resources with ultra-low noise. Unlike the square waves used by conventional switch mode power supplies, this Aavik series boasts a resonant mode design which is principally driven by sine waves.
When more power is needed, the operating frequency increases, which, in turn, has the advantage that the power density also increases, thus allowing higher peak power when required by the music.
The noise floor in the raw power supply is extremely low but could be even further lowered by the ultra-low noise regulators supplying the different parts of the circuit. The noise of these regulators is measured in a few microvolts respectively nanovolts, which is significantly lower than the noise level of conventional regulators.
The principle of a traditional class A power supply is to create switching noise. This happens when the large capacitors have to absorb current from the transformer. Current can only flow into the capacitors when the voltage on the outside is less, so when current is needed, the voltage across the capacitors will be lower than the 50/60 Hz cycle. Although defined as a linear power supply, there are a lot of current transients flowing in these power supplies.
The Aavik 880 amplifier has four 500W power factor corrected resonant mode power supplies. The 500w power supplies combined with the extremely large power banks mean that the amplifier can deliver peak currents in excess of 80A, so it is not the power supply in the Aavik 880 amplifier that will limit how much you can feed into your speakers in transient and they will never switch.

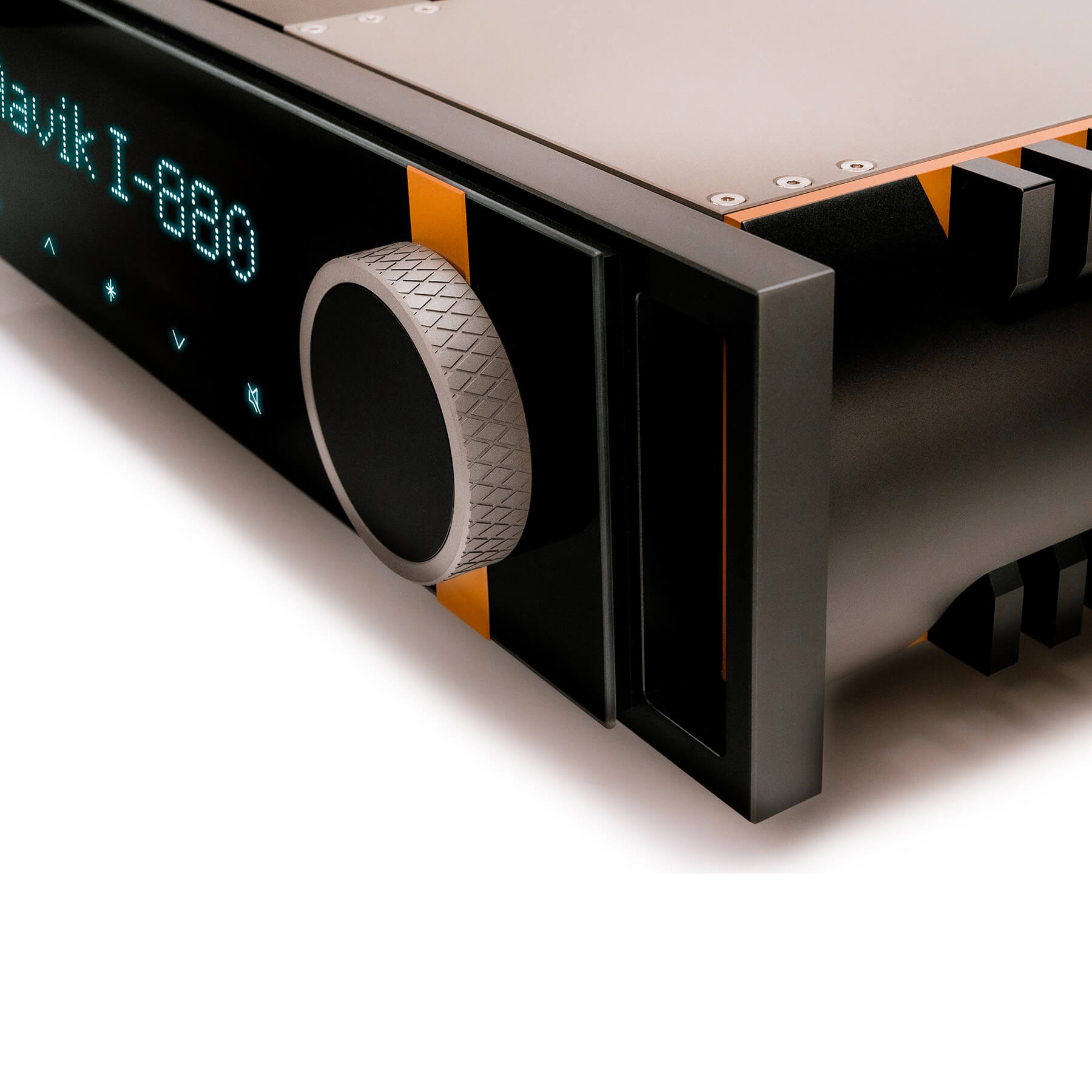

Volume control
Affects the sonic experience .
The Aavik 880 amplifier features a unique inverted amplifier topology with virtual ground for maximum stability. Feedback becomes so strong that the signal can be attenuated to a gain of less than 1. This maintains the full signal with the lowest signal-to-noise ratio, whether the volume is turned up or down. This provides the speakers with a clear and distinct flow of information, making even the subtlest nuances of timbre and texture audible against an extremely quiet soundstage.
Switchless optical input board - LDR based.
The LDR (Light dependent resistor) is ultra quiet thanks to the switchless principle. The traditional switch arrays and relays are more noisy. They suppress subtle sound details and unnaturally color the tone.
The 880 cabinet design - A study of materials and shapes
The exterior design of the Aavik 880 amplifier is the result of Flemming Erik Rasmussen's artistic and aesthetic work. However, his design philosophy is and always has been that design must serve purpose. The cabinet of the Aavik 880 amplifier was designed primarily with the goal of maintaining the best audio characteristics of the electrical design, ie the lowest inductance, reducing hysteresis to an absolute minimum, and ensuring excellent resonance control. In addition, since this was a Class A amplifier that was to be developed, there were some predefined premises for the design. With these goals in mind, the design process became a study of shapes and materials that opened up a unique and constructive synergy between Flemming Erik Rasmussen and Michael Børresen.
In addition, the amplifier features cooling elements on the sides and top that clearly bear Flemming's design signature. The volume button is covered with a rubber layer, and the control panel is designed as a large LCD touchscreen display.
The choice of materials, as well as the interior and exterior design, are the result of Fleming and Michael's collaboration and are characterized by functionality, but also by a very aesthetic and elegant design.
A solid copper enclosure
Based on Flemming Erik Rasmussen's fascination with copper for its visual appearance and feel, and Michael Børresen's insight into the sonic properties of copper, this material was chosen as a fundamental component of the design. As a result, the Aavik 880 amplifiers feature a solid copper enclosure. This results in a further reduction in hysteresis, lower output impedance, lower inductance, a positive effect on the damping factor, and cooler operation of the amplifier. All these components ensure that the music is reproduced with more energy and power.
Active Analog Crossover
The Aavik active analog crossover secures a precise timing in the delivery of sound signals to the receiving components. This is essential to avoid a harsh and compressed sound. The Aavik active crossover has been designed to either very precisely control a subwoofer or with the integrated low pass and high pass filter to control a 2.1 home theater system. Alternatively, Aavik's analog crossover can function as analog room correction control.
Excellent and absolutely precise subwoofer control
Since the crossover is analog, there is no latency. The timing of the signal transfer to both the speakers and the subwoofer is absolutely precise. This results in an extremely pristine and authentic sound. Other conventional crossovers, such as DSP transport the signal through a digital circuit. This results in a latency of 15-20 msec. The effect of a failing precision in the timing of the signal transfer to the speakers, respectively the subwoofer, impairs an authentic audio reproduction, creates a compressed sound and adds a harsh tone to the music.
Control your home theater and your 2.1 audio setup
By using the low pass and high pass filter, the sound performance of your individual speakers can be optimized. When directing the low frequencies to the subwoofer, more energy to the main speakers will be released. To ensure an even volume of the speakers and the subwoofer, the gain on the high pass and the low pass filter can be controlled separately.
Analog Room Correction – prevent “Room Boom”
Room correction is a matter of identifying and eliminating room resonance. The one specific resonance that creates an unpleasant and disturbing sound is a pressure resonance resulting from the given size of the room – subjectively, it feels like a "boom" emanating from the speakers. To eliminate this room-specific resonance, the Aavik amplifiers can adapt their audio performance and make allowances for any given room size. Both the low pass and high pass filter allow the listener to see the exact frequency progress around those low frequencies which cause this disturbing 'Boom' effect.
The Tesla coil principle
The principle is to have two coils that are wound in each direction / a coil and a counter coil. In Ansuz's words: "a double inverted coil" - the two coils are both carrying voltage - and when the Tesla coil encounters a voltage spike a counter spike is activated in order to eliminate the noise. As Noise spikes are pure voltage and carries virtually no charge, the cancellation is quite good, but not 100%. By adding more P-TC coils in parallel the performance increases. By implementing this the perceived blackness in the music improves significantly.
Ansuz Tesla coils are available in various types as they complement each other in terms of strengths / weaknesses.
Analog dither technology 3rd generation
A 3rd generation of the Ansuz analog dither technology has been developed. Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. The active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.
Analysis and studies have led to new options – and a lot of listening has resulted in this 3rd generation design which is a further optimization of the most effective frequencies which opens the soundscape even more and with the tiniest details when it comes to reproduction of the recordings .
Active Tesla coil
Effective noise killer .
The active Tesla coils are power supplied which secures a remarkable lower impedance and thus a better ability to eliminate noise. The active version is about three to four times more efficient than passive Tesla coils.
